Seat Repair
Application of 3D printed reinforcements to reduce failure of various cabin interior seat components
Stirling Dynamics has developed an effective solution involving reinforcement and advanced manufacturing techniques. The back shell panels, particularly the upper corners of the backrest module shell, are prone to cracks and damage due to impacts from hand luggage and other foreign objects. To solve this common issue faced by customers across different brands, we introduce the Seat Repair as a sustainable, cost effective, and easy solution to frequent breakages.
Get in touch >Production Information
-
Root Cause Analysis & Optimal Reinforcement
Stirling Dynamics is able to conduct an extensive root cause analysis to understand the forces acting on the panels, followed by determining the optimal reinforcement strategy for different type of seat. In order to alleviate stress in critical areas and prevent failures.

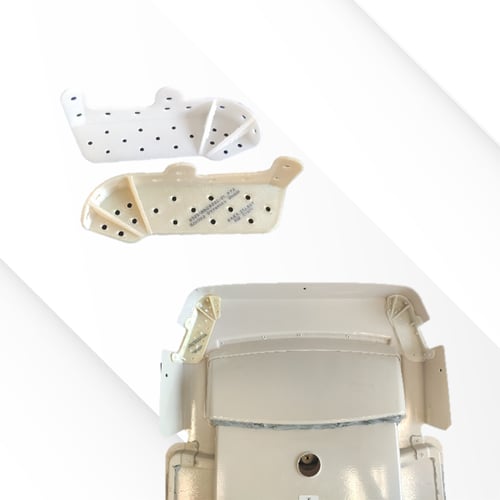

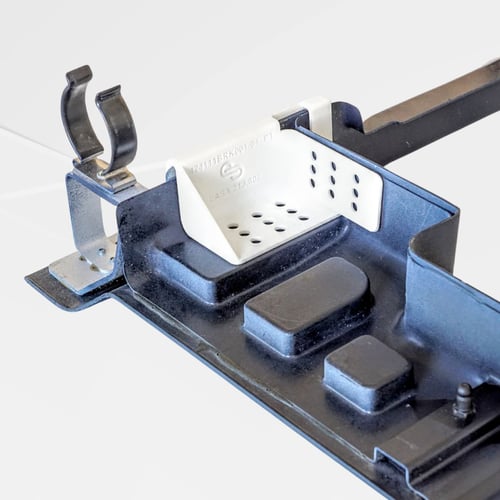

The proposed solution involves pre-fabricated plastic elements (symmetrical) bonded to the inside of the backrest module shell using an elastic polymer-bonding agent. This reinforcement not only reduces the visible signs of breakages, but also prevents failures from occurring in the first place.
-
Specification
Additive Layer Manufacturing (ALM) technology to facilitate rapid prototyping
-
Certification
Delivered with EASA 21J Design Organization Approval (EASA.21J.807). Serial parts delivered with EASA Form 1 certification.
-
OEM Part Number (PN)
00024730B01
00024731B01
320016BSR001-01 -
Stirling Dynamics Part Number (PN)
422136ZCB001-01 (EPA)
422136ZSC001-01 (EPA)
422136ZNI001-01 (EPA)
422136ZLB001-01 (EPA)
422136ZRK001-01 (EPA)
424111BRK001-01
424111BRK002-01
424111BRK003-01
424111BRK004-01 -
Alternative OEM Part Number (PN)
50085022000XXP6
50085060020XXP6
D1-03-XXX-1AV/D1-06-XXX1AV
00024730B01
00024731B01
5008502023000P2
139-00-403-19BK
139-00-403-12BK
5059502041002R6
5059502041003R6
5059501044002R6
150710-11T888
130-00-461-97NP
130-00-461-98NP
V08-00-460-16
130-00-460-75NP
897-00-460-05
130-00-466-28NP
EP00036648
EP00036647
130-00-460-29NP
V52-00-400-44
130-00-460-27NP
For more information, or to order, please get in touch
